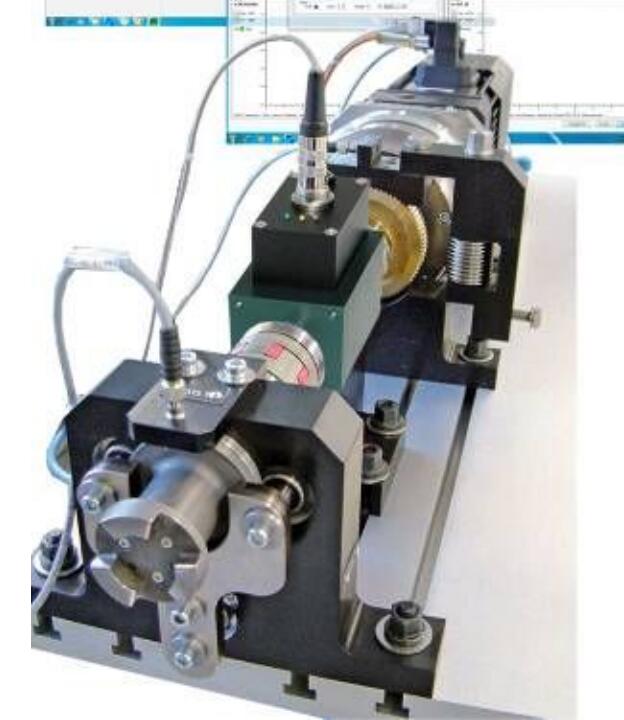

Small and handy Torque Sensor

Shaft to Shaft Rotary Torque
Torque Range: 0.005N·m to100 N·m
±0.005 N·m 12000rpm
±0.05N·m 25000 rpm
±0.5N·m 30000 rpm
±1N·m 30000rpm
±2 N·m 30000 rpm
±5 N·m 20000 rpm

24-hour national online service:

025-84363968

consult

Introduction
List
Notice

Supply Voltage：+24VDC
Output Signal：0 ~ 5V, 1 ~ 5V, 0 ~ 10V , (4 ~ 20mA), 20 ~ 4mA, 5 ~ 0V and other user-specific specifications.
High Speed Applications: up to (6,000 rpm) 10,000 rpm口
20,000 rpm口30,000 rpm口
Work environment：Operating temperature range -20℃~60℃
Overload Capacity: 200%
Accuracy：±0.1%口±0.25%, ±0.5%,口±1.0% (±0.25%)
Linearity：<0.1%
Long Term Stability ：<0.1% FS per year
With a humidity lower than 90%RH
Non-Contact (no slip rings)
No Electronic Components in Rotation
No Electrical Noise
