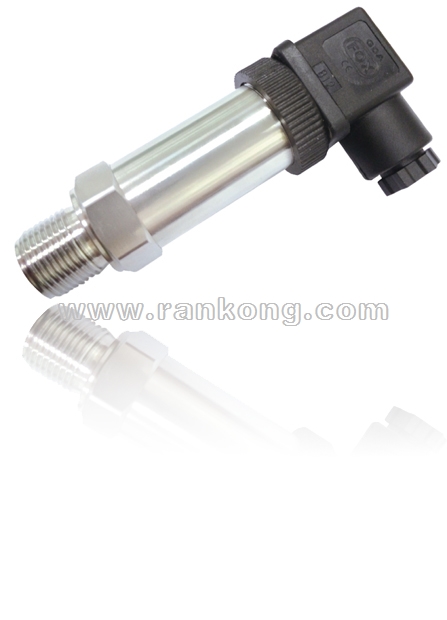

PMR300 Piezoresistive Analog Output

Feature
Wide measurement range, Full stainless steel
Protection:IP65
Various output signal
CE Certification
Scene adjustable
Pressure range: -0.1…0～0.01…100MPa
·CE and RoHS approved
·Accuracy: 0.5％FS 0.25％FS
·Output signal: 4～20mADC（2-wire）， 0/1～5VDC（3-wire）
·Intrinsic safe version,Exd pressure transmitter

24-hour national online service:

025-84363968

consult

Introduction
List
Notice

Application

Petroleum industry, chemical industry, metallurgy industry, electric power, hydrology etc.

Boats&ships and aviation industry

Hydraulic pressure and pneumatic control system

MeasuringRange:0~2kPa...100MPa

CompensatedTemperature:-10~70

PowerSupply:24VDC

OutputSignal:4~20mA、1~5V、0~10mA、0~20mA、0~5V、1~10kHz

MeasuringRange:0~2kPa...100MPa

CompensatedTemperature:-10~70

RECOMMEND

Hot line：025-84363968

Address：南京市棲霞區馬群科技園

Email：rankong163@163.com

Consult

RECOMMEND

Links： | |

Measurement Range	-0.1．．．0~0.01．．．~100MPa
Proof pressure	≤1.5X rated pressure or 110MPa which ever is less
Pressure type	Gauge, absolute ,sealed gauge
Accuracy	±0.3%（typical） ±0.5%（Max.）
Long term stability	±0.1%F.S/year（typical） ±0.2%F.S/year（Max.）
Temperature Error- Zero	±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa）
Temperature Error -Span	±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa）
OperatingTemperatureRange	-20℃~80℃
Storage Temperature Range	-40℃~125℃
Power supply	15～30VDC
Output signal	4～20mA 0.5～4.5V 0～5/10VDC

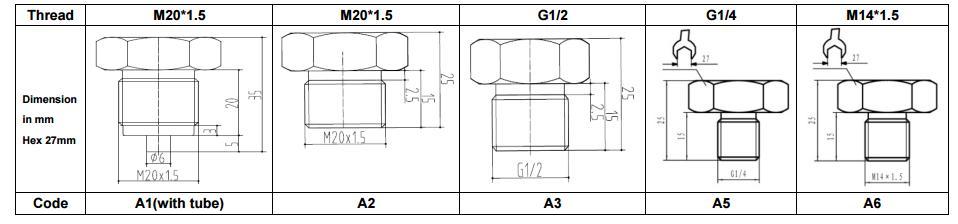

Pressure port	M20×1.5,G1/2 or customize
Housing material	1Cr18Ni9Ti stainless steel
Diaphragm material	316L
O-ring	Fluororubber
Cable	polyethylene
Insulation resistance	100MΩ,100VDC
Protection	IP65
