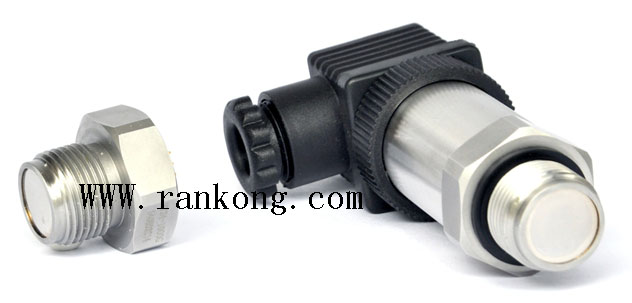

PMR350 Product application: mud pressure

Product application: mud pressure measurement
Piezoresistive Pressure Transducer
Pressure range: -0.1MPa...0~20kPa...100MPa;
Accuracy: ±0.1%FS（min.） ±0.25%FS（typ.） ±0.5%FS（max.）

24-hour national online service:

025-84363968

consult

Introduction
List
Notice

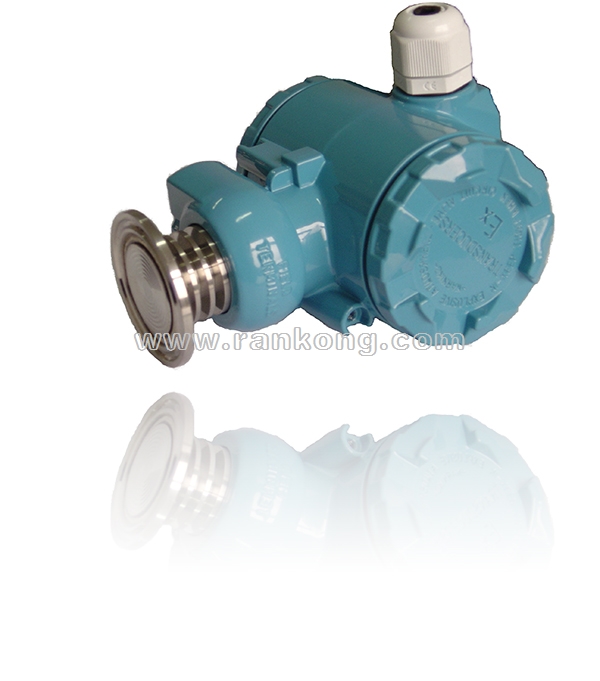

MeasuringRange:-0.1~0~35KPa...40MPa

CompensatedTemperature:0~70

Product features: the product adopts all-stainless steel structure, flat film technology, etc., 4 ~ 20mA is convenient for remote transmission and installation,
and has obtained CE certification and explosion-proof authentication.

PowerSupply:24VDC

OutputSignal:4~20mA、1~5V、0~10mA、0~20mA、0~5V、1~10kHz

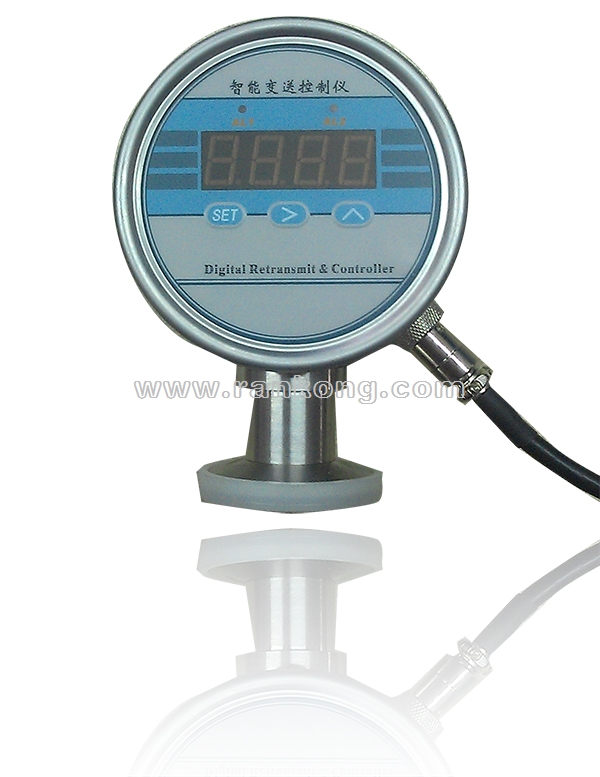

MeasuringRange:-0.1~0~0.01...40MPa

CompensatedTemperature:0~70

RECOMMEND

Hot line：025-84363968

Address：南京市棲霞區馬群科技園

Email：rankong163@163.com

Consult

RECOMMEND

Links： | |

Pressure range	-0.1MPa…0～20kPa…45MPa
Overpressure	1.5 times FS or 110MPa (min.value is valid）
Power supply	1.5mADC
Signal	≥70mVDC（0～20kPa，≥50mVDC）
Accuracy	±0.1%FS（min.） ±0.25%FS（typ.） ±0.5%FS（max.）
Long-term stability	±0.3%FS/year
Compensation temp.	0℃～50℃
Operation temp.	-10℃～80℃
Storage temp.	-40℃～100℃
Zero temp. coefficient	±0.02%FS/℃（typ.） ±0.04%FS/℃（max.）
FS temp. coefficient	±0.02%FS/℃（typ.） ±0.04%FS/℃（max.）
Housing	Stainless steel 1Cr18Ni9Ti
Diaphragm	Stainless steel 316L
O-ring	Viton
Cable	Polythene
Response time（10%～90%）	≤1ms
Insulation resistance	100MΩ，100VDC
Production	IP65（cable connection）
