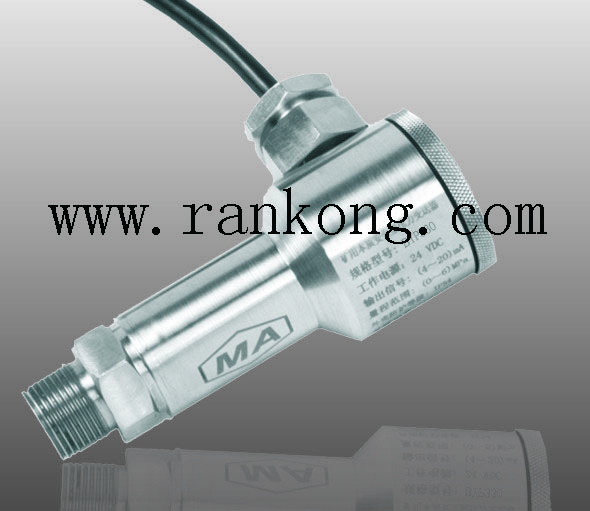

PRM301 Intrinsically Safe Pressure
Piezoresistive silicon chip employed
MEMS technology
EXIA IIC T6
Measuring Range:0~1kPa...100MPa
24-hour national online service:
025-84363968- Introduction
- List
- Notice
OperatingTemperature:-20~85
PowerSupply:24VDC
MeasuringRange:-0.1~0~0.02...100MPa
Shell Material:AluminiumAlloy
OperatingTemperature:-20~85
|
Measurement Range |
0~35KPa．．．~100MPa |
|
Proof pressure |
≤1.5X rated pressure or 110MPa which ever is less |
|
Pressure type |
Gauge, absolute ,sealed gauge |
|
Accuracy |
±0.25%（Typical） ±0.5%（Max.） |
|
Long term stability |
±0.2%F.S/year |
|
Temperature Error- Zero |
-20℃~80℃ |
|
Temperature Error -Span |
-40℃~120℃ |
|
OperatingTemperatureRange |
15～30VDC |
|
Storage TemperatureRange |
4～20mA 0～10/20mA 0/1～5VDC |
|
Power supply |
M20×1.5 or customize |
|
Output signal |
Cast aluminium alloy(E+H) |
|

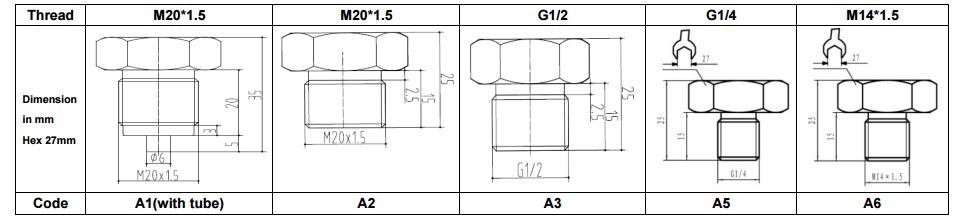

Pressure port |
316L |
|
O-ring |
Fluororubber |
|
Cable |
Polyethylene |
|
Insulation resistance |
100MΩ 100VDC |
|
Protection |
IP65 |
