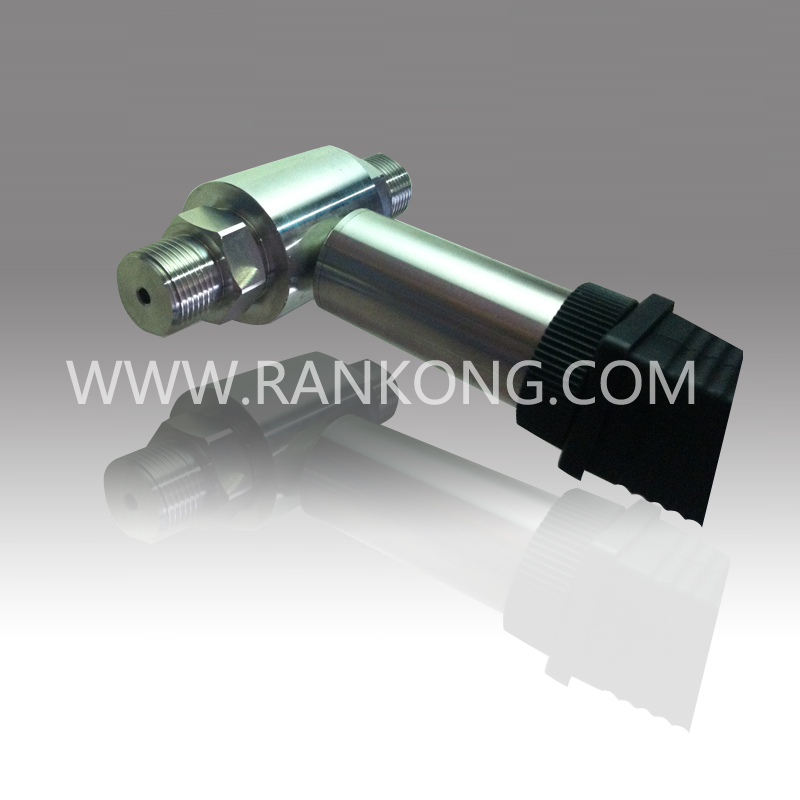

PMR610 Piezoresistive Differential Pressure
from:admin time：2022-10-25
read：Product application: applicable to pressure difference measurement and control in oil,
chemical, power plant, urban water supply and hydrological exploration.
pressure range:0-3.5MPa;
accuracy:0.25%FS;
Output signal: 4-20m ADC
Measuring Range:0~1kPa...3.5MPa
Power supply: 2-wire 15～28VDC 3-wire 15～28VDC
Electric connection: plug connection or Φ7.2mm 7-pin cable
Insulation resistor: 100MΩ，50VDC
Construction Material
Diaphragm: stainless steel 316L
Filled liquid: silicon oil
Shock effect: ≤1% at 3gRMS, 30～2000Hz
Media: liquid or gas which is compatible with construction material
