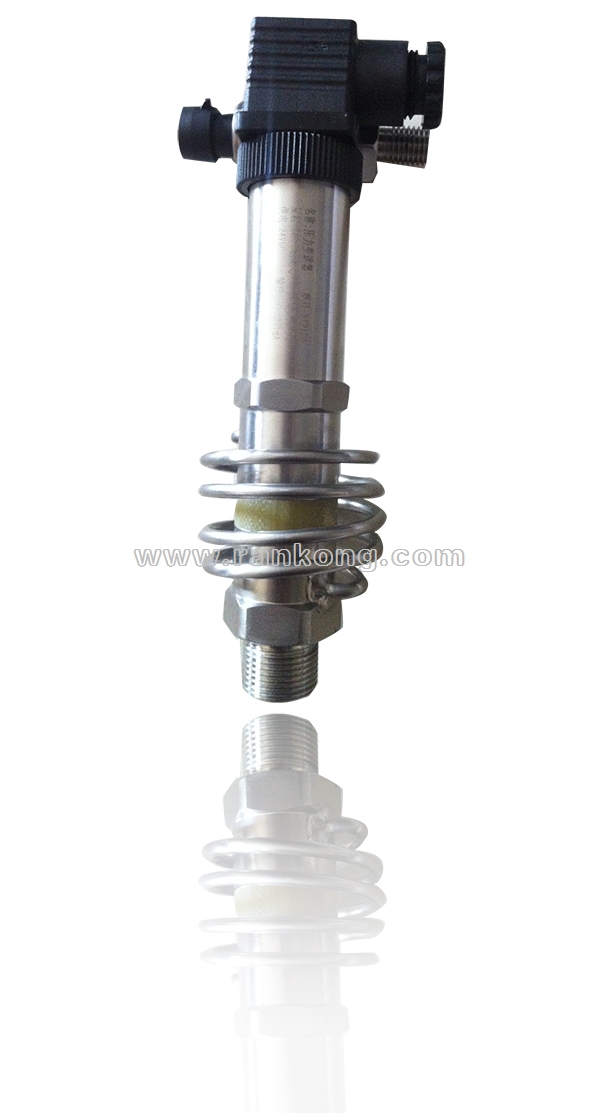

PMR310 High-temperature Pressure
from:admin time：2022-10-25
read：Pressure range: -0.1MPa…0MPa～0.01MPa…160MPa(G)；0MPa～0.025MPa…60MPa(A)
·Output signal: 4～20mADC 2-wire
Medium temp. -20℃～150℃ -20℃～300℃
316L stainless steel isolation diaphragm
structure
Imported high temperature resistant chip
Wide range of applicable medium
temperature
Strong anti-interference ability and
long-term stability
Direct contact for measurement of high
temperature medium, improving pressure response frequency
Rich pressure ranges provided, including low,
medium and high pressure ranges
Anti-vibration, shock resistant and corrosion
resistant
Pressure range
-100KPa, 10KPa, 35KPa, 70KPa, 100KPa, 250KPa, 400KPa, 600KPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa,
Pressure range
-100KPa, 10KPa, 35KPa, 70KPa, 100KPa, 250KPa, 400KPa, 600KPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa,
