PMR316 Intelligent Wireless Pressure Transmitter
from:admin time：2022-10-25
read：GPRS network available in many application areas with mobile signal;
? LCD real-time display with backlight;
? PC and mobile terminal data application;
? IP67 protection, moisture-proof, field environment available.
PressureRange:0～2.5...100MPa
Guarenteeperiod:18months
Guarenteeperiod:18months
1.PressureRange:0～2.5...100MPa
2.GaugePressure，SealingGaugePressue，AbsolutePressure
3.High－performence，all－solid－state，highreliability
4.Guarenteeperiod:18months
| Pressure range | -0.1MPa…0～20kPa…100MPa |
| Overpressure | 1.5 times FS or 110MPa (min.value is valid） |
| Power supply | 1.5mADC |
| Signal | ≥70mVDC（0～20kPa，≥50mVDC） |
| Accuracy | ±0.1%FS（min.） ±0.25%FS（typ.） ±0.5%FS（max.） |
| Long-term stability | ±0.3%FS/year |
| Compensation temp. | 0℃～50℃ |
| Operation temp. | -10℃～80℃ |
| Storage temp. | -40℃～100℃ |
| Zero temp. coefficient | ±0.02%FS/℃（typ.） ±0.04%FS/℃（max.） |
| FS temp. coefficient | ±0.02%FS/℃（typ.） ±0.04%FS/℃（max.） |
| Housing | Stainless steel 1Cr18Ni9Ti |
| Diaphragm | Stainless steel 316L |
| O-ring | Viton |
| Cable | Polythene |
| Response time（10%～90%） | ≤1ms |
| Insulation resistance | 100MΩ，100VDC |
| Production | IP65（cable connection） |

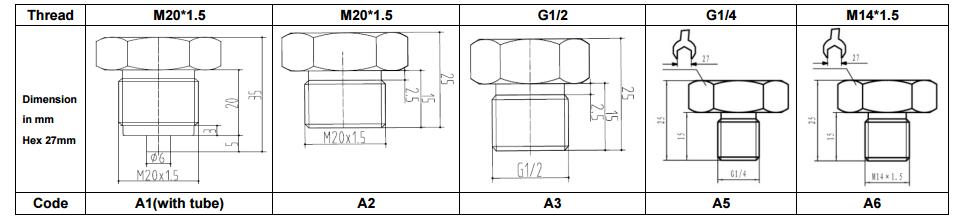

Order
Note：
1.
We can also provide the user with voltage power supply product, the power supply
is more than 9V; please note it when you select option codes;
2.
When the user install flush diaphragm product at local place, please pay
attention to correct sealing method to prevent the stress affecting product
stability;
